SVELTE
SVELTE

The world’s lighest steel road bike.
L Side view

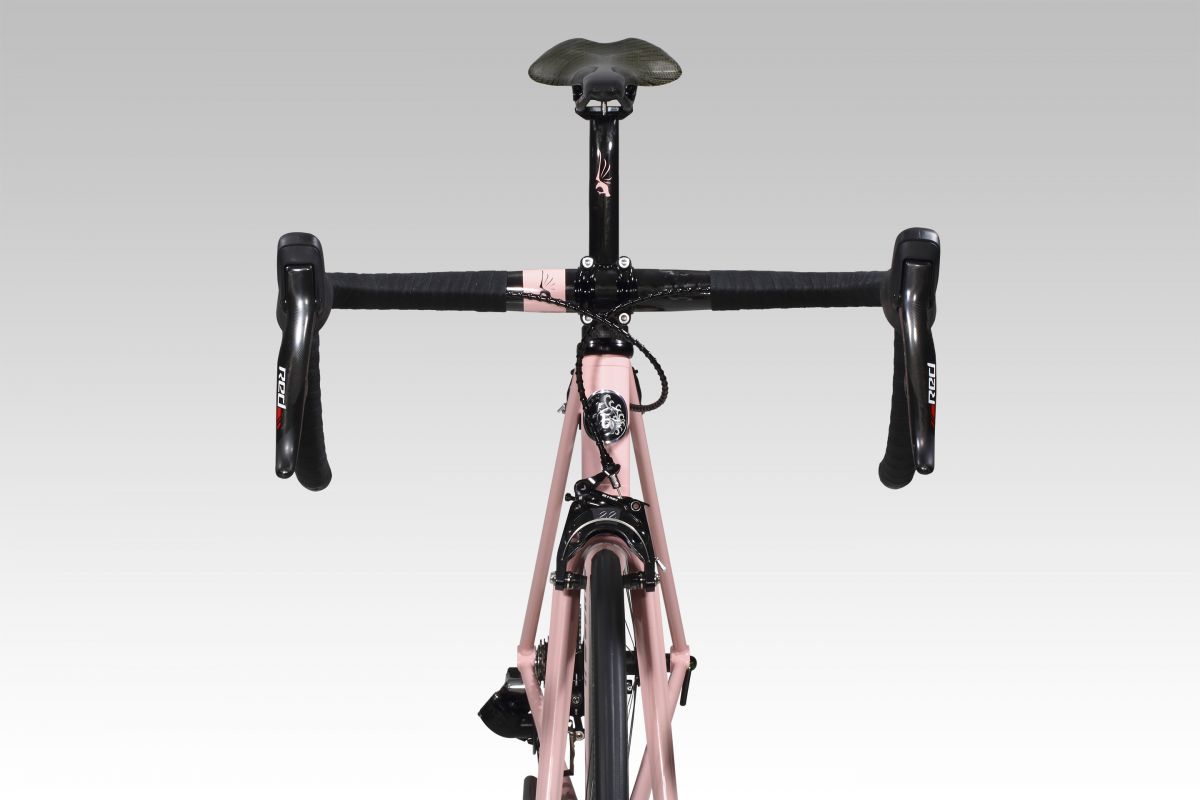

Front View

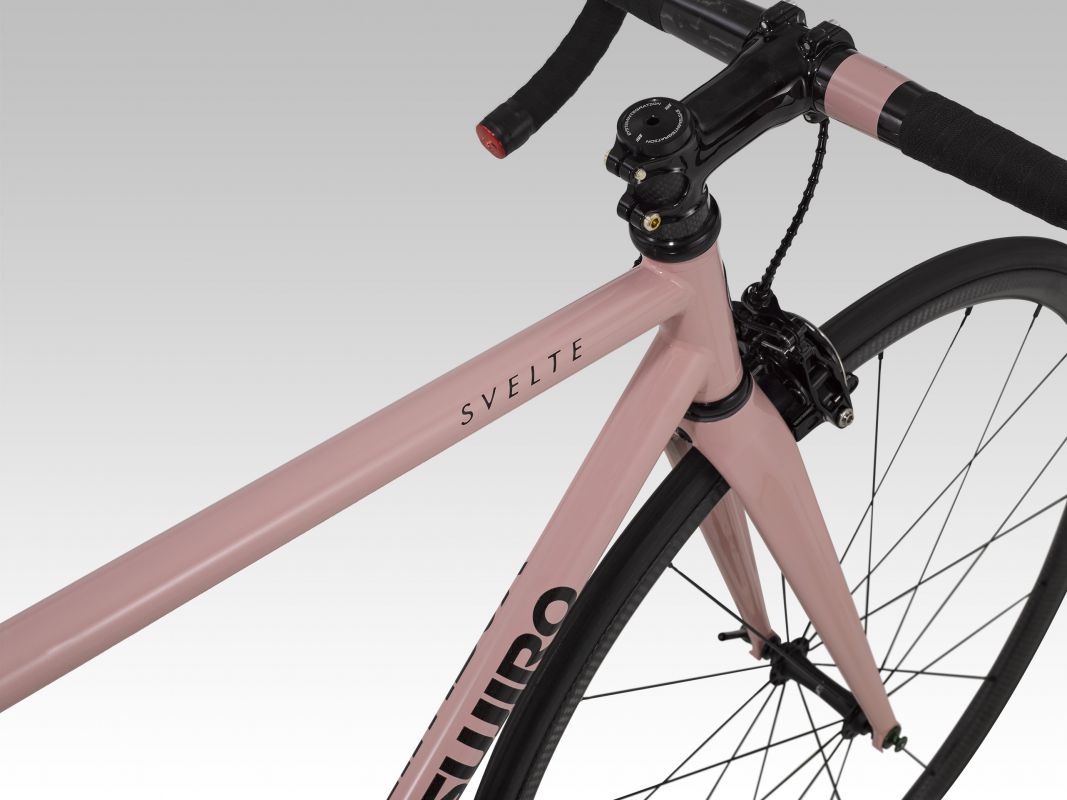

R half view

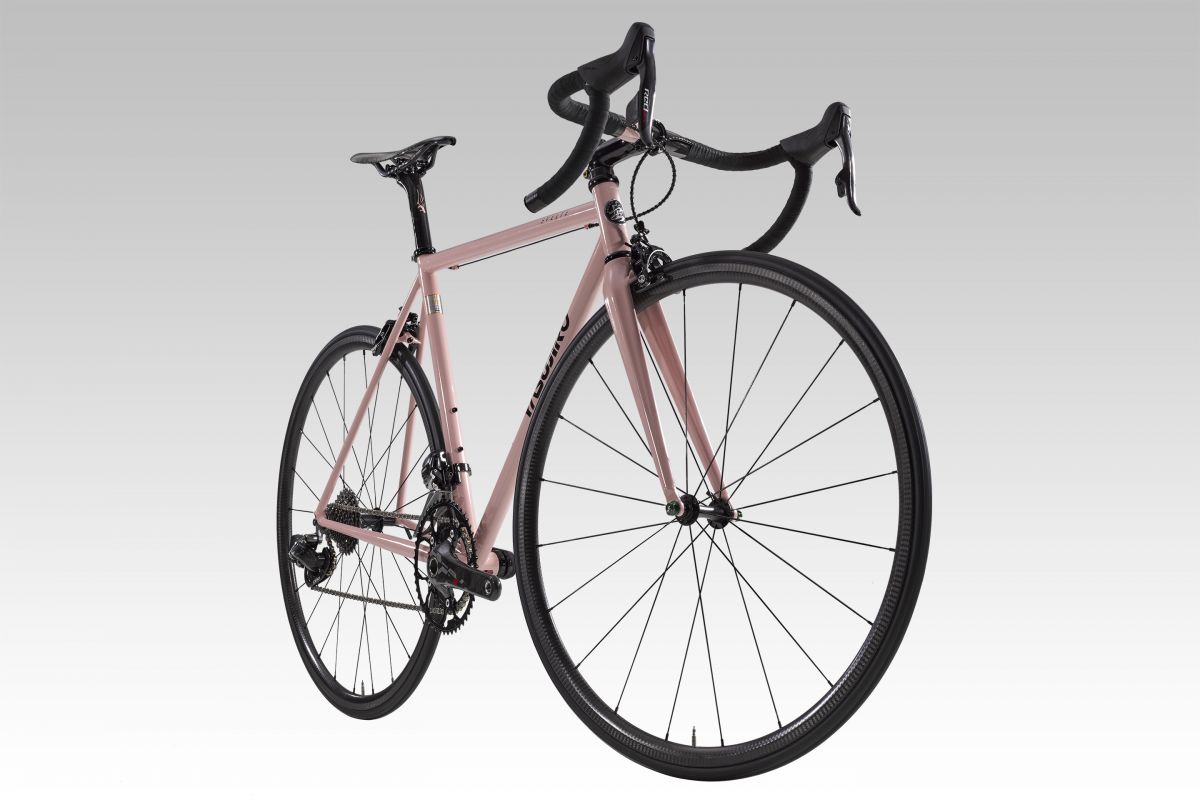

R half view 2
L Side view
Front View
R half view
R half view 2

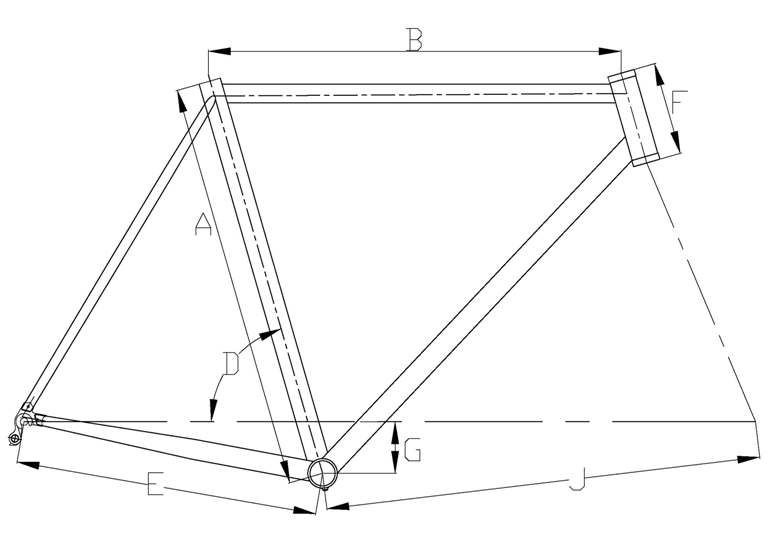

Frame Geometry


Seat Tube
 (C-T)

Top tube, Effective
 (C-C)

Seat Tube Angle

Chain stay Length

Head Tube Length

Bottom Bracket Drop

Front center
Size A B D E F G J
46CM 465 495 75 405 100 70 570
49CM 490 515 75 405 100 70 577
51CM 510 530 74 405 115 70 584
53CM 530 545 74 405 125 70 594
55CM 550 555 73.5 408 135 70 599
57CM 570 570 73.25 408 155 70 600
59CM 590 580 73 410 172 70 610
62CM 620 590 73 410 195 70 622


Bike BOM
Frame Tange Ultimate CrMo tubing set
Fork Be King Carbon
Headset AL  ceramics
Stem BE King AL CNC Ext100
Headlebar Be King Carbon
Brakes Cane Creek EE
Brake levers SRAM RED eTap 22
Front derailleur SRAM RED eTap 22
Rear deraileur SRAM RED eTap 22
Shifters SRAM RED eTap 22
Crankset SRAM RED eTap 22 50/34T
Cassette  SRAM RED eTap 22 11S/11*28
Wheels Be King Carbon Tubular
Tires Tufo Elite Jet Tubular 700*20
Seat post  Be King Carbon 27.2
Saddle Be King Carbon
Remark:
* Figures based on non-specific 700 * 20C tire, All specs subject to change
* Head tube 1-1/8", BSA BB Part, Brake Reach 39~49mm
* Sold as Frame Kit: Includes Frame / Fork / Headset
* Use Full TANGE Ultimate tubeset
* Weight : 1700g, (Frmae size 52CM + Fork)
* Complete Bike For reference only, Please contact the sales staff
