ULTRA
ULTRA
Classic lugged frame kit for an up to date road / touring bike.
The use of Tange Prestige Japan double butted seamless tubes results in a frame kit light weight.

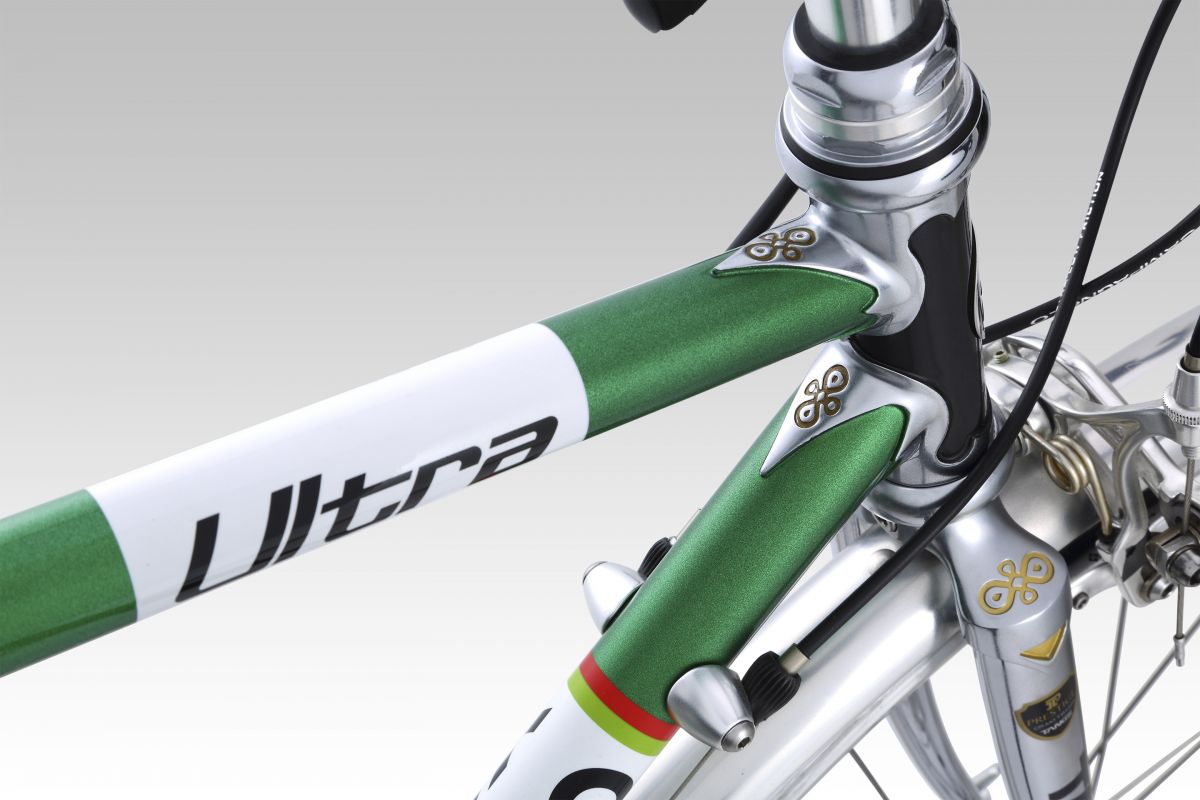

2 TT

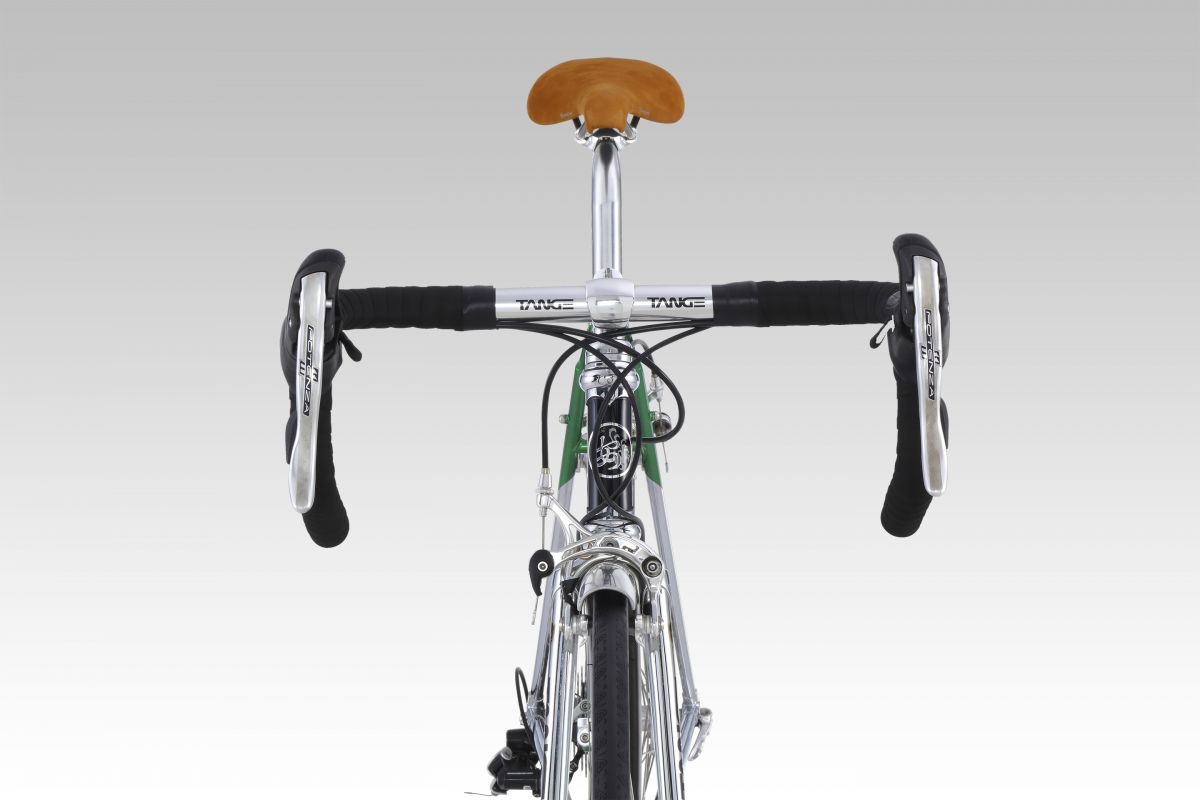

3 Front View

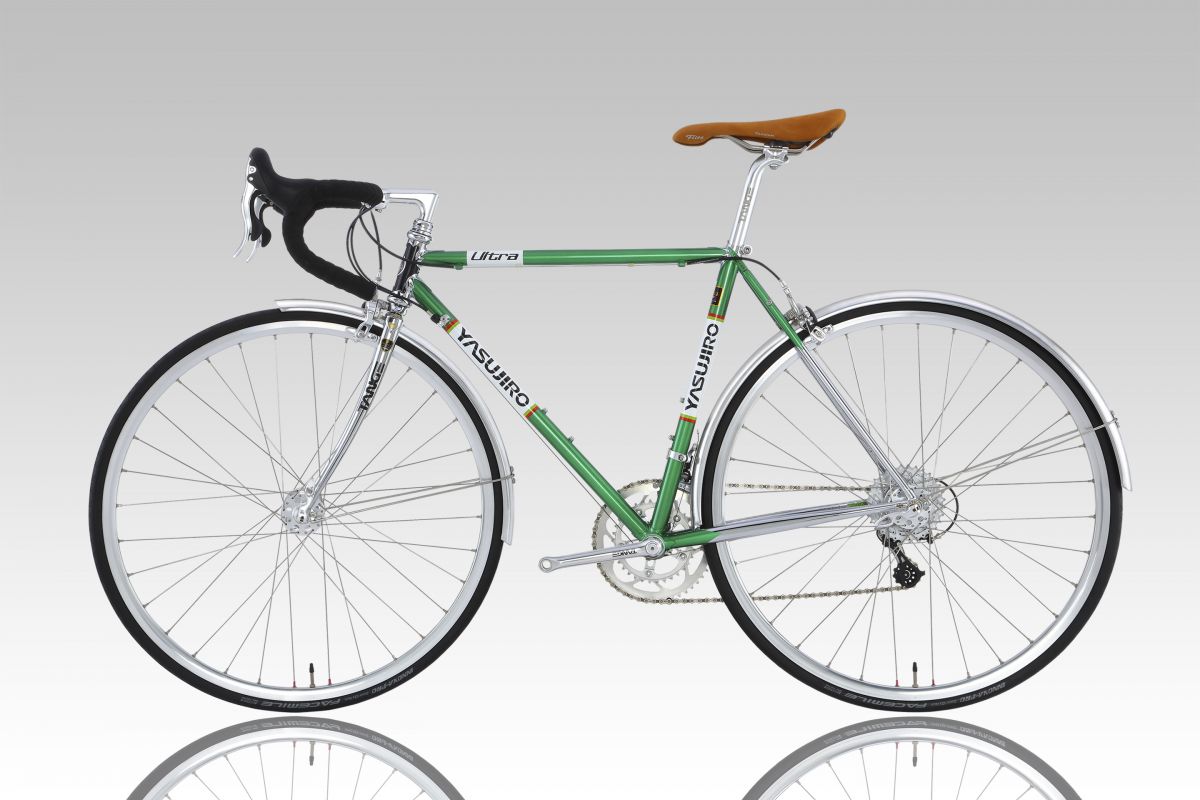

15 Non drive side
2 TT
3 Front View
15 Non drive side

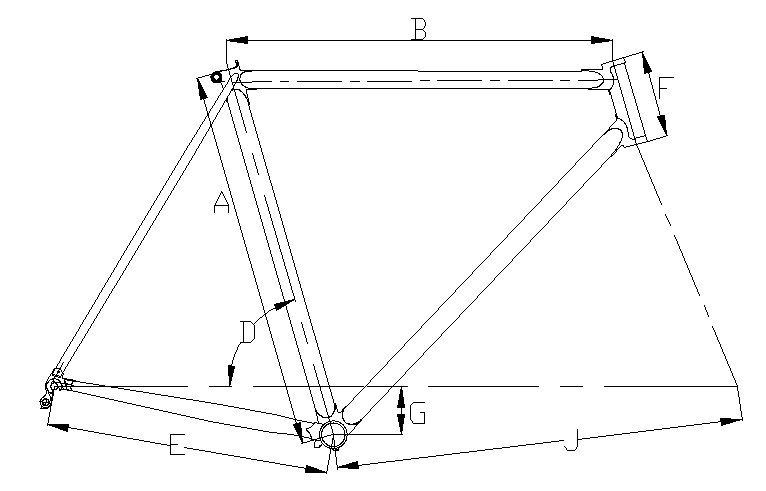

Frame Geometry


Seat Tube
(C-T)

Top tube, Effective
(C-C)

Seat Tube Angle

Chain stay Length

Head Tube Length

Bottom Bracket Drop

Front center
Size A B D E F G J
47CM 470 495 75 420 90 65 570
49CM 490 515 75 420 90 70 578
51CM 510 535 74 420 102 70 583
54CM 540 555 73.5 420 136 70 599
57CM 570 565 73.25 420 153 70 600
59CM 590 580 73 420 172 70 610
63CM 630 590 73 420 200 70 622

Bike BOM
Frame Tange Prestige Japan Cr-mo , Lugged
Fork Tange Prestige Cr-mo
Headset Tange Seiki
Stem Tange T-5330 Bar Bore 26 * -17Deg
Headlebar Tange T-4244 Drop Bar
Brakes   ALHONGA,43-57mm, Silver
Brake levers Campagnolo Potenza
Front derailleur Campagnolo Potenza 11S
Rear deraileur Campagnolo Potenza 11S
Shifters Campagnolo Potenza Power Shift Ergopwer 2*11SP
Crankset TANGE T-6030 50*34
Cassette Campagnolo Chorus 11S/11*32
Wheels Alloy sealed hubs 700*22 mm Aero rims
Tires Continental GP 4000S 700*23
Seat post TANGE T- 3350 Single bolt 27,2
Saddle  Selle ITALIA, FLITE 1990 Nubuk, Ti
Remark:
* Figures based on non-specific 700 * 23/25C tire, All specs subject to change
* Head tube 1", BSA BB Part, Brake Reach 39~49mm
* Sold as Frame Kit: Includes Frame / Fork / Headset
* Use Full TANGE PRESTIGE JAPAN tubeset
* Weight : 2170g (Frame size 52CM + Fork )
* Complete Bike For reference only, Please contact the sales staff
