CAMEO
CAMEO
Handmade lugged ,
Lightweight and performing classic-modern bike with a stunning style.
2 tt
6 Front View
4 Front view
5 BB LOGO
7 Back view
8 Dropout View
9 Seat Tube view
10 Front view
11 Seat lug
12 front view
13 BB Bottom view
14
15 Non drive side
3 TT VIEW
2 tt
6 Front View
4 Front view
5 BB LOGO
7 Back view
8 Dropout View
9 Seat Tube view
10 Front view
11 Seat lug
12 front view
13 BB Bottom view
14
15 Non drive side
3 TT VIEW

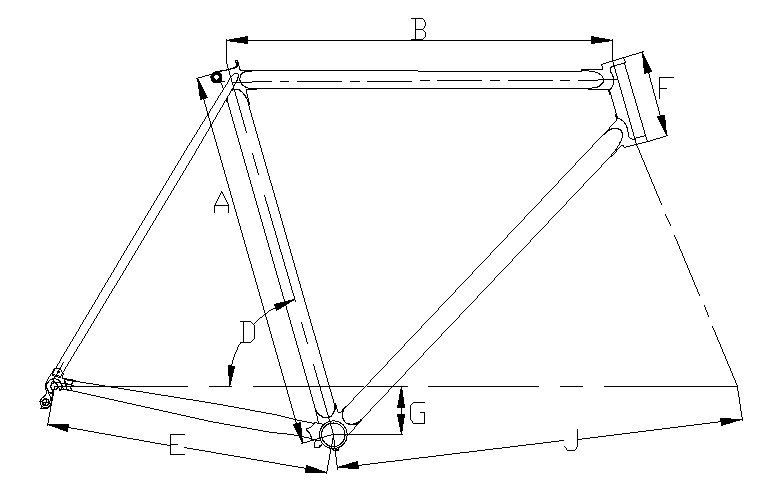

Frame Geometry


Seat Tube
(C-T)

Top tube, Effective
(C-C)

Seat Tube Angle

Chain stay Length

Head Tube Length

Bottom Bracket Drop

Front center
Size
A
B
D
E
F
G
J
46CM
465
495
75
405
90
70
569
49CM
490
515
75
405
90
70
576
52CM
520
535
74
405
107
70
585
55CM
550
555
73.5
408
136
70
599
57CM
570
570
73.25
408
153
70
600
59CM
590
580
73
410
172
70
610
62CM
620
590
73
410
200
70
622

Bike BOM
Frame Tange Ultimate CrMo, Hand made Lugged
Fork Tange Prestige CrMo
Headset Tange Seiki
Stem Ritchey WCS Carbon
Headlebar Tange Full Carbon
Brakes Campagnolo Super Record Skeleton
Brake levers Campagnolo Super Record
Front derailleur Campagnolo Super Record 11S
Rear deraileur Campagnolo Super Record 11S
Shifters Campagnolo Super Record Ultra ShiftErgopower
Crankset Campagnolo Super Record Ultra Torque Ti-53*39
Cassette Campagnolo Super Record 11S/12*29
Wheels Campagnolo Bora Ultra Tubular
Tires Continental Competition Tubular 700*22
Seat post Ritchey Super Logic
Saddle Selle ltalia Turbo BK
Remark:
* Figures based on non-specific 700 * 23/25C tire, All specs subject to change
* Head tube 1", BSA BB Part, Brake Reach 39~49mm
* Sold as Frame Kit: Includes Frame / Fork / Headset
* Use Full TANGE Ultimate tubeset
* Weight : 1990g, (Frmae size 52CM + Fork)
* Complete Bike For reference only, Please contact the sales staff
