NOTCHER
NOTCHER

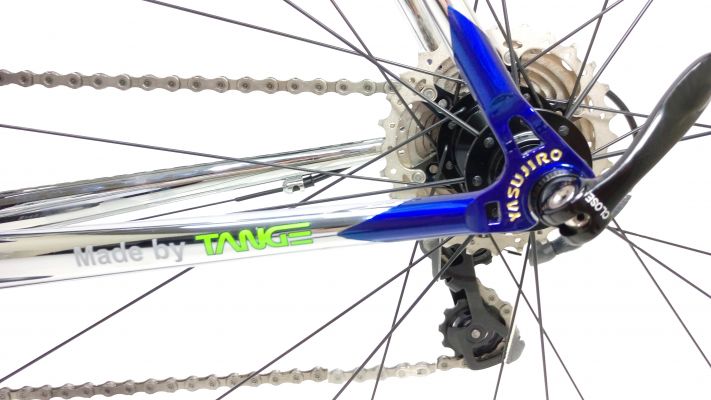

The Yasujiro wishbone back stay add to the performance appearance,
and value of both on road bicycle ,
Lightweight and performing modern bike with a stunning style.
2 tt
2 tt
Front View
4 Top view
3 Top view
6 Front View
7 HT View
8 Front view
9 Front View
10 back view
11 back view
12 seat lug view
13 Back view
14 seat lug
15 Dropout
16 Seat tube
17 Front view
18 BB View
19 Non drive side
2 tt
2 tt
Front View
4 Top view
3 Top view
6 Front View
7 HT View
8 Front view
9 Front View
10 back view
11 back view

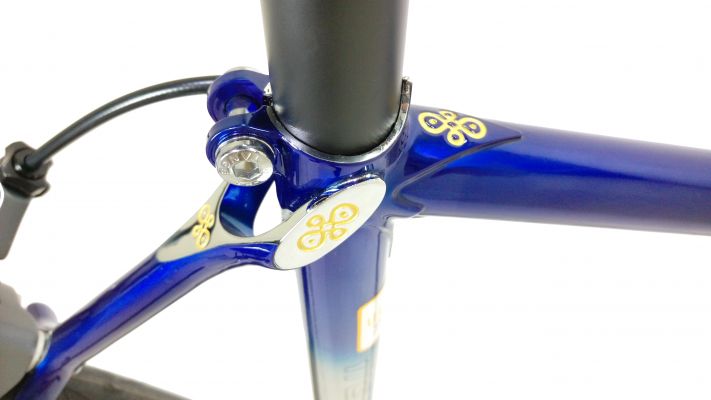

12 seat lug view
13 Back view
14 seat lug
15 Dropout
16 Seat tube
17 Front view

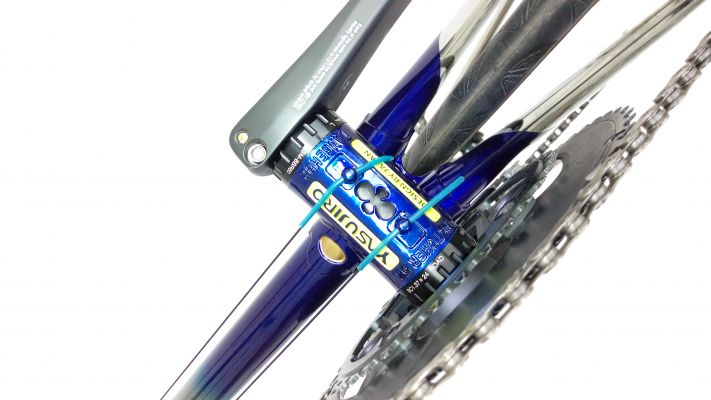

18 BB View
19 Non drive side

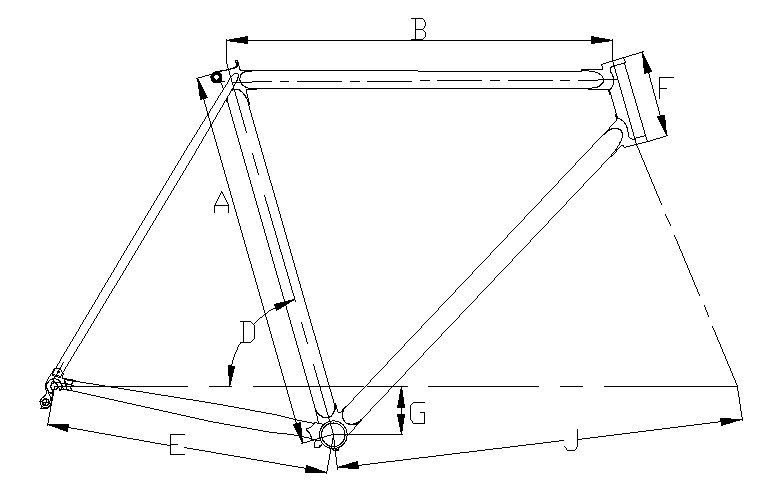

Frame Geometry


Seat Tube
(C-T)

Top tube, Effective
(C-C)

Head Tube Angle

Chain stay Length

Head Tube Length

Bottom Bracket Drop

Front Center
Size A B D E F G J
46CM 465 495 75 405 90 70 569
49CM 490 515 75 405 90 70 576
52CM 520 535 74 405 107 70 585
55CM 550 555 73.5 408 136 70 599
57CM 570 570 73.25 408 153 70 600
59CM 590 580 73 410 172 70 610
62CM 620 590 73 410 200 70 622

Bike BOM
Frame Tange Ultimate CrMo
Fork Tange Prestige CrMo
Headset Be King
Stem Ritchey WCS AL 7075
Headlebar 3T CARBON
Brakes Campagnolo Super Record
Brake levers Campagnolo Super Record
Front derailleur Campagnolo Super Record
Rear deraileur Campagnolo Super Record
Shifters Campagnolo Super Record 2*11SP
Crankset Campagnolo Super Record Ultra Torque Ti-53*39
Cassette Campagnolo Super Record 11S/12*29
Wheels Campagnolo Bora Ultra Tubular
Tires Continental Competition Tubular 700*22
Seat post Carbon 27.2mm
Saddle BROOKS C13

Remark:
* Figures based on non-specific 700 * 23/25C tire, All specs subject to change
* Head tube: 1-1/8", BSA BB Part, Brake Reach 39~49mm
* Sold as Frame Kit: Includes Frame / Fork / Headset
* Use Full TANGE Ultimate tubeset
* Weight :    g (Frame size 52CM + Fork )
* Complete Bike For reference only, Please contact the sales staff
