KOKUMA
KOKUMA

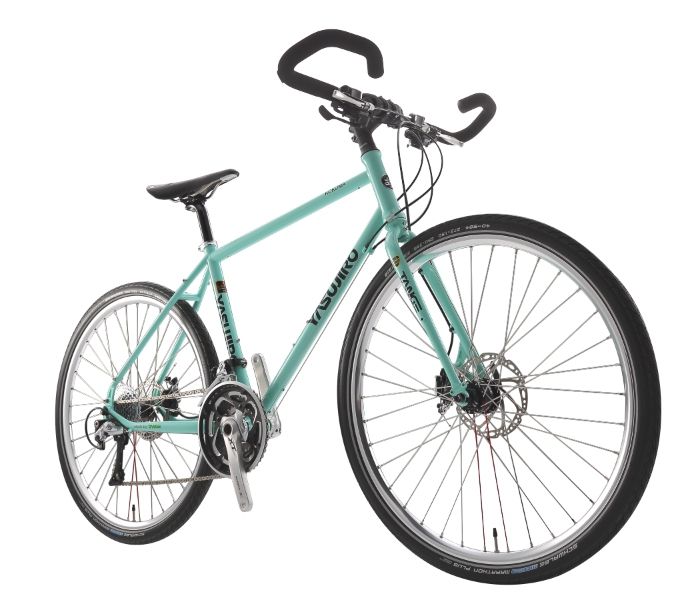

Moden Touring bicycle,
That will be your best companion on the epic tour,
That  you have always been  dreaming of,
It  will be your best friend on everyday errands,
On your ride to work or any other trip
That you wish to make.

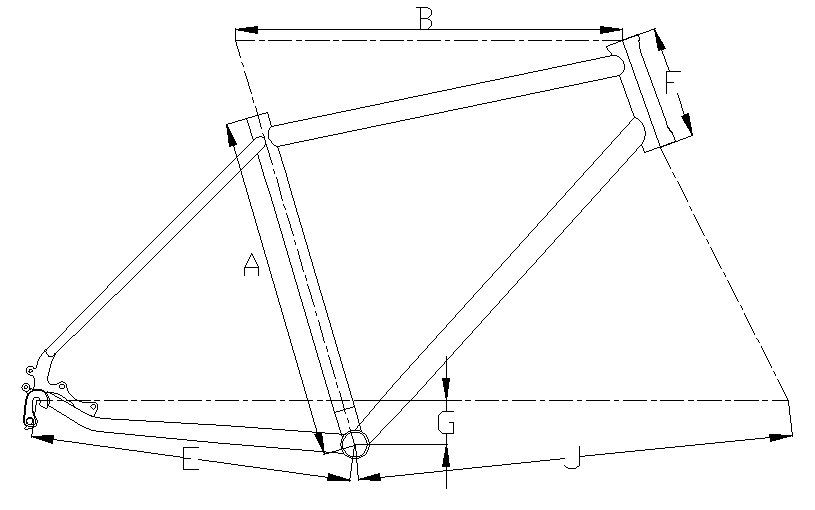

Frame Geometry



Seat Tube
(C-T)

Top tube, Effective
(C-C)

Seat Tube Angle

Chain stay Length

Head Tube Length

Bottom Bracket Drop

Front
center
Size A B D E F G J
44CM 440 510 74 440 140 60 581
47CM 470 530 73.5 440 155 60 597
50CM 500 550 73.5 440 180 60 607


Bike BOM
Frame Tange Prestige CrMo, TIG
Fork Tange T-2T10 Infinity, TIG
Headset Tange Seiki, INTEGRATED
Stem Tange AL 6061, EXT:100mm
Headlebar Humpert, AHS-B-SL sport/Comfort
Brakes Promax Hydraulic disc brakes
Brake levers Promax Hydraulic disc
Front derailleur Shimano Deore
Rear deraileur Shimano Deore
Shifters Shimano Deore 3*10SP
Crankset Shimano Deore FC-T611-L, L:170mm, 48*36*26T W/CG
Cassette Shimano Deore 10S-11*34T
Wheels 26"1.5" alloy rims
Tires Kenda K-1053 26"*1.5"
Seat post Tange T-3350 27,2mm
Saddle Brooks Cambium C17

Remark:
* Figures based on non-specific 26" * 1.5"  tire, All specs subject to change
* Head tube 1-1/8", BSA BB Part, DIsc Brake
* Sold as Complete Bike & Frame Kit ( Includes Frame / Fork / Headset)
* Use Full TANGE PRESTIGE tubeset
