NUDITY PLUS
NUDITY PLUS
New Style Road Plus design.
3
2
1
3
2
1

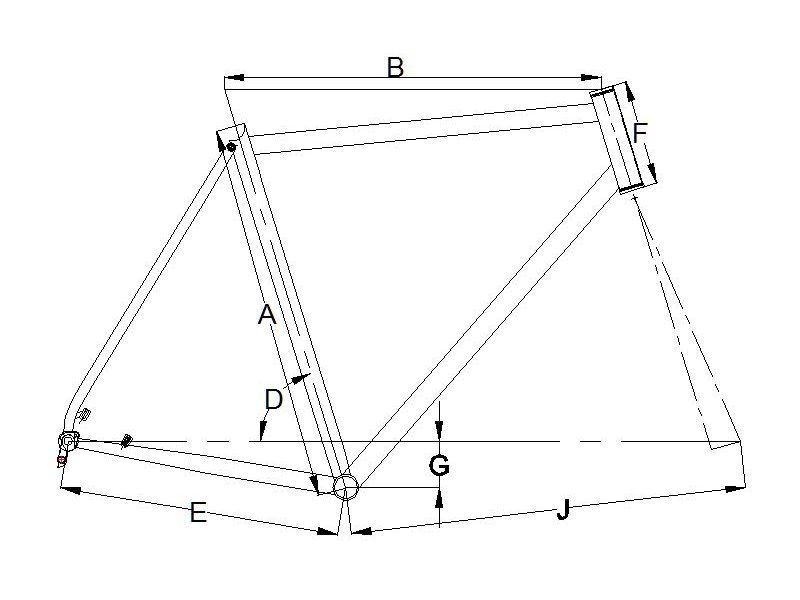

Frame Geometry


Seat Tube
(C-T)

Top tube, Effective
(C-C)

Seat Tube Angle

Chain stay Length

Head Tube Length

Bottom Bracket Drop

Front center
Size
A
B
D
E
F
G
J
46CM
460
515
74.5
425
115
70
575
51CM
510
530
74
425
115
70
580
54CM
540
550
74
425
130
70
590
57CM
570
570
73.5
425
160
70
600
59CM
590
585
73.25
425
195
70
610
62CM
620
600
73
425
220
70
625

SPECS

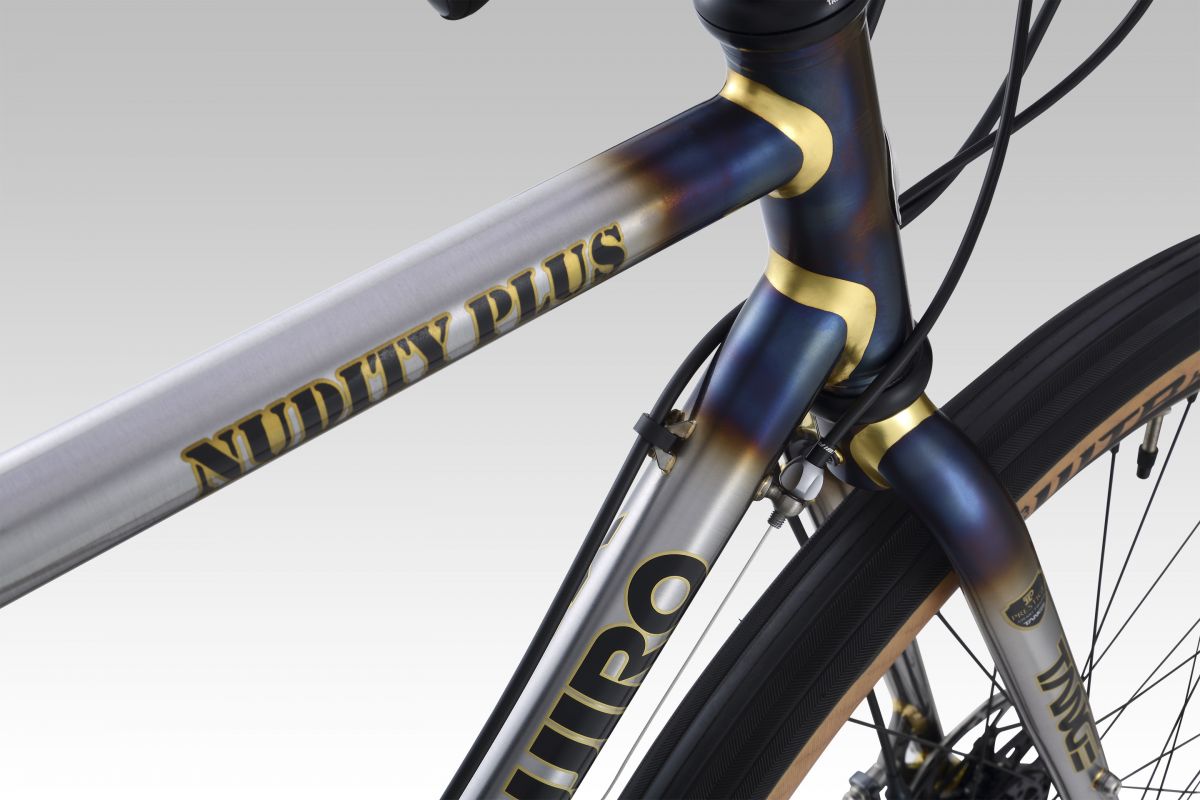

Frame Tange Prestige  CrMo Fillet- Brazing Welding
Fork
Tange Prestige CrMo Fillet- Brazing Welding
Headset Tange Seiki
Stem Tange T-5500
Headlebar SATORI X-RACE Drop Bar
Brakes SRAM Force 22 Hydraulic Disc Brake
Brake levers SRAM Force 22
Front derailleur SRAM Force 22
Rear deraileur SRAM Force 22
Shifters SRAM Force 22
Crankset SRAM Force 11SPD 24MM 50/34
Cassette SRAM Force 22 MAX 11-32CS
Wheels ALLOY AERO Rim
Tires WTB 650*47B
Seat post TANGE  T-3360 OD27.2mm
Saddle Prologo Zero II SPACE

Remark:
* Figures based on non-specific 700*40/ 650*47B tire, All specs subject to change
* Head tube 1-1/8", BSA BB Part,
* Sold as Frame Kit: Includes Frame / Fork / Headset
* Use Full TANGE PRESTIGE tubeset
* Weight : 3150g (Frame size 54CM + Fork )

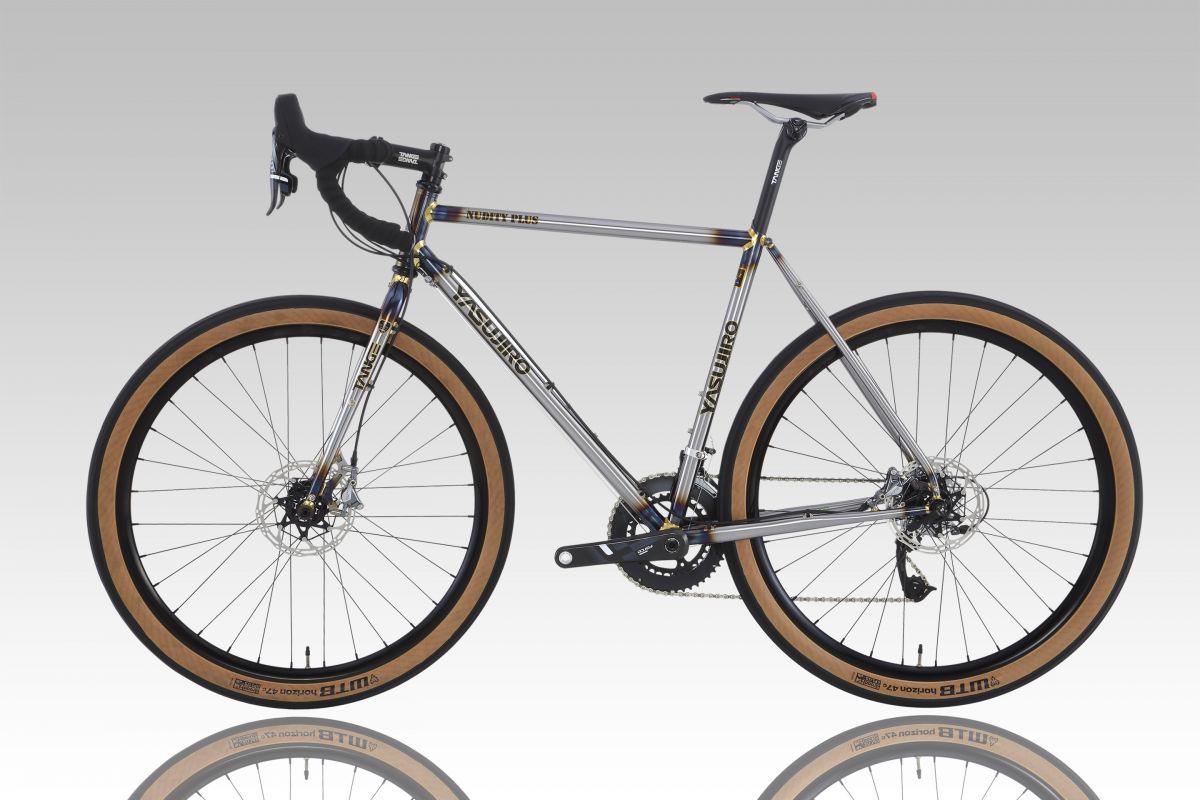

* Complete Bike For reference only, Please contact the sales staff
