NUDITY ROAD
NUDITY ROAD

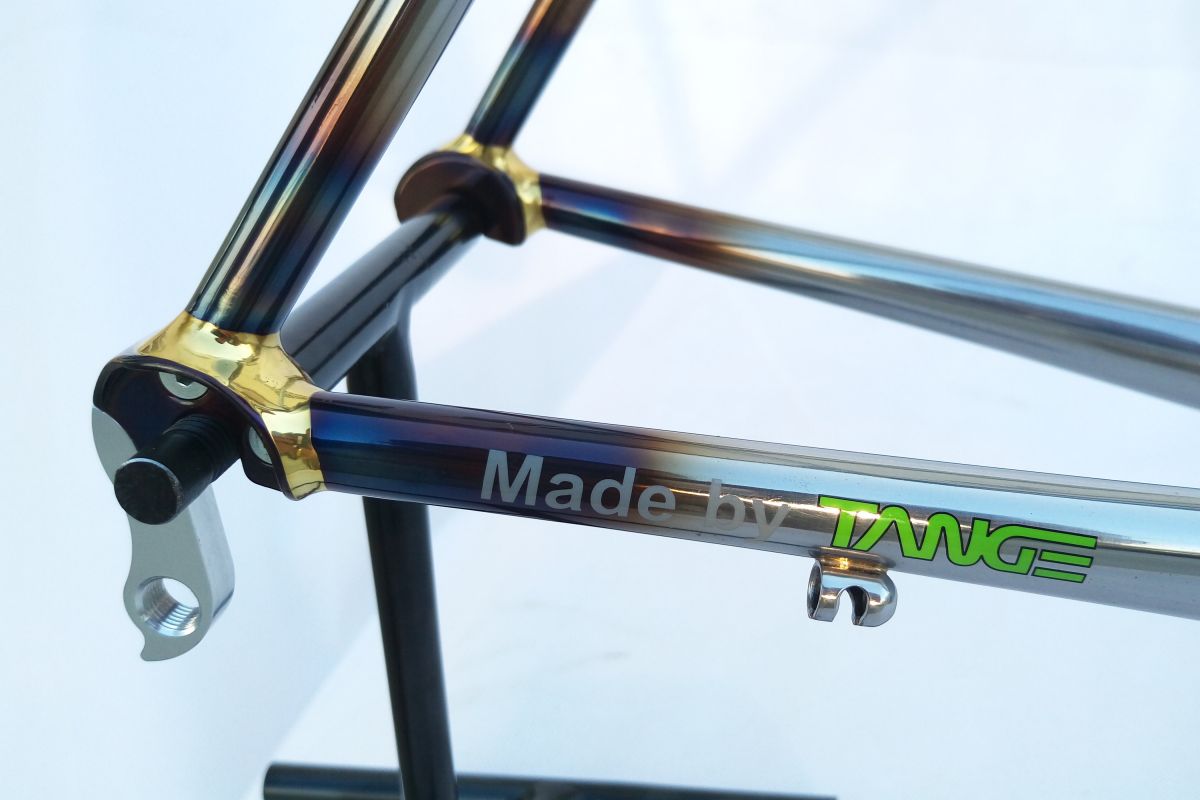

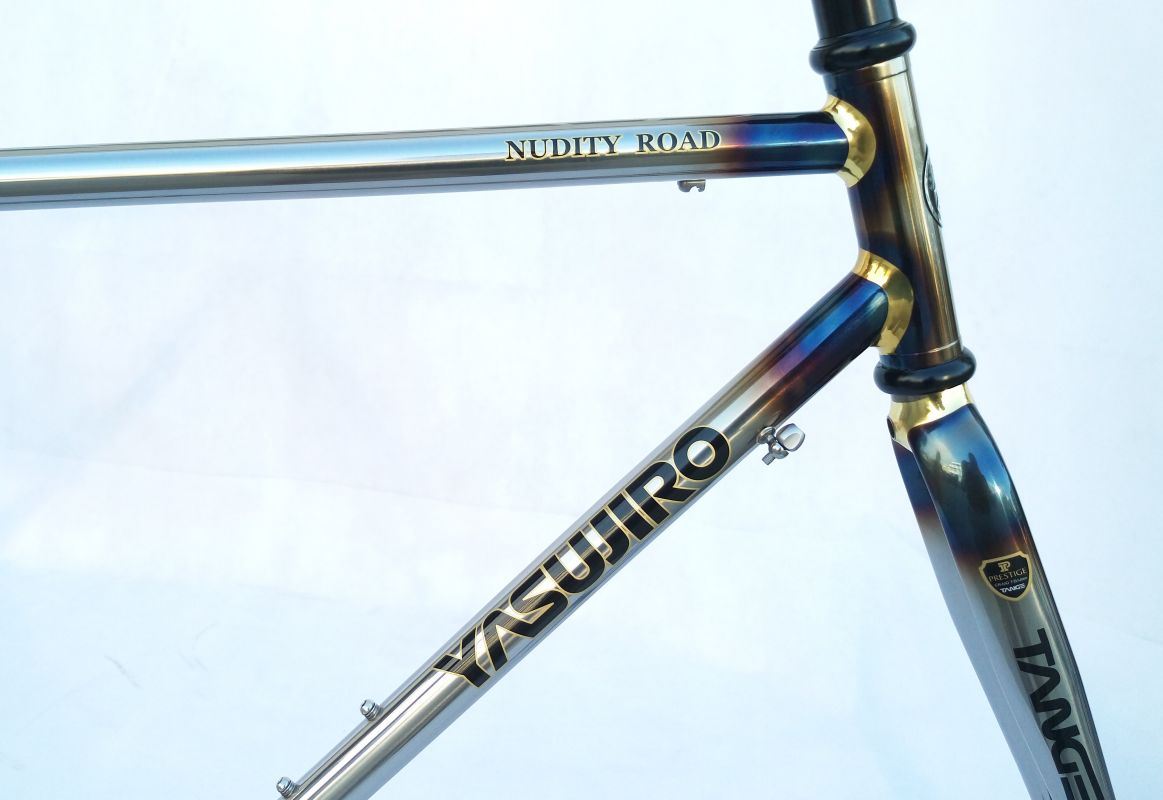

The art of brazing at its best revealed under clear coating.
1
2
1
2

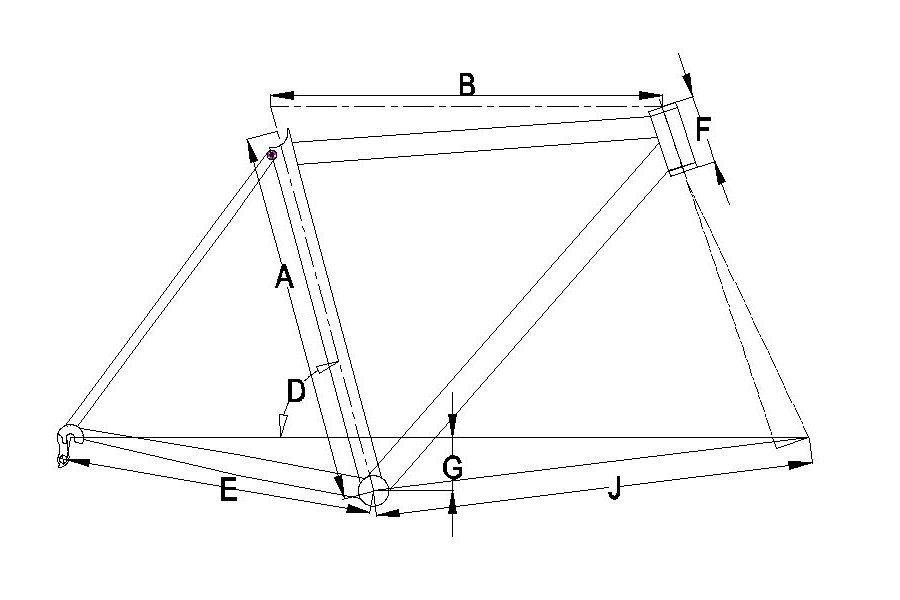

Frame Geometry
Size
A
B
D
E
F
G
J
46CM
465
495
75
405
90
70
569
49CM
490
515
75
405
100
70
576
52CM
520
535
74
405
120
70
585
55CM
550
555
73.5
408
140
70
599
57CM
570
565
73.3
408
155
70
610
59CM
590
580
73
410
175
70
620
62CM
620
590
73
410
200
70
630

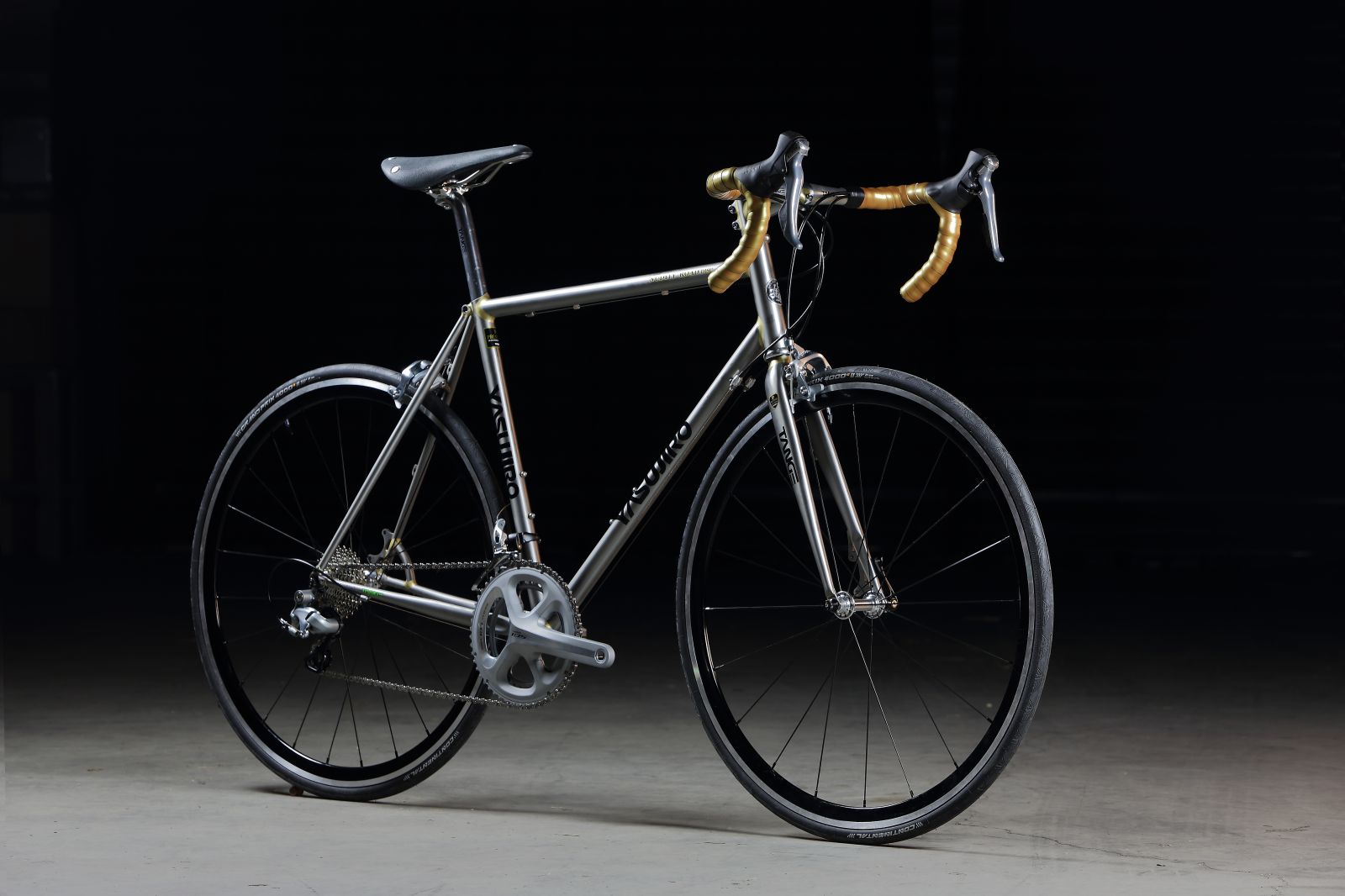

Bike BOM
Frame Tange Prestige Japan CrMo Fillet- Brazing Welding
Fork Tange Prestige CrMo Fillet- Brazing Welding
Headset Tange Seiki
Stem Tange T-5320
Headlebar Tange T-4244 Drop bar
Brakes Shimano 105
Brake levers Shimano 105
Front derailleur Shimano 105-11S
Rear deraileur Shimano 105-11S
Shifters Shimano 105 2*11S
Crankset Shimano 105-50*34
Cassette Shimano 105-11S-12*34T
Wheels Alloy sealed hubs 30 mm Aero rims
Tires Continental GP 4000S 700*23
Seat post Tange T-3350 OD 27,2
Saddle Brooks Cambium C15

Remark:
* Figures based on non-specific 700 * 23/25C tire, All specs subject to change
* Head tube: 1-1/8", BSA BB Part, Brake Reach 39~49mm
* Sold as Frame Kit: Includes Frame / Fork / Headset
* Use Full TANGE PRESTIGE JAPAN tubeset
* Weight : 2300g (Frame size 52CM + Fork )
* Complete Bike For reference only, Please contact the sales staff
