ADMIRE
ADMIRE

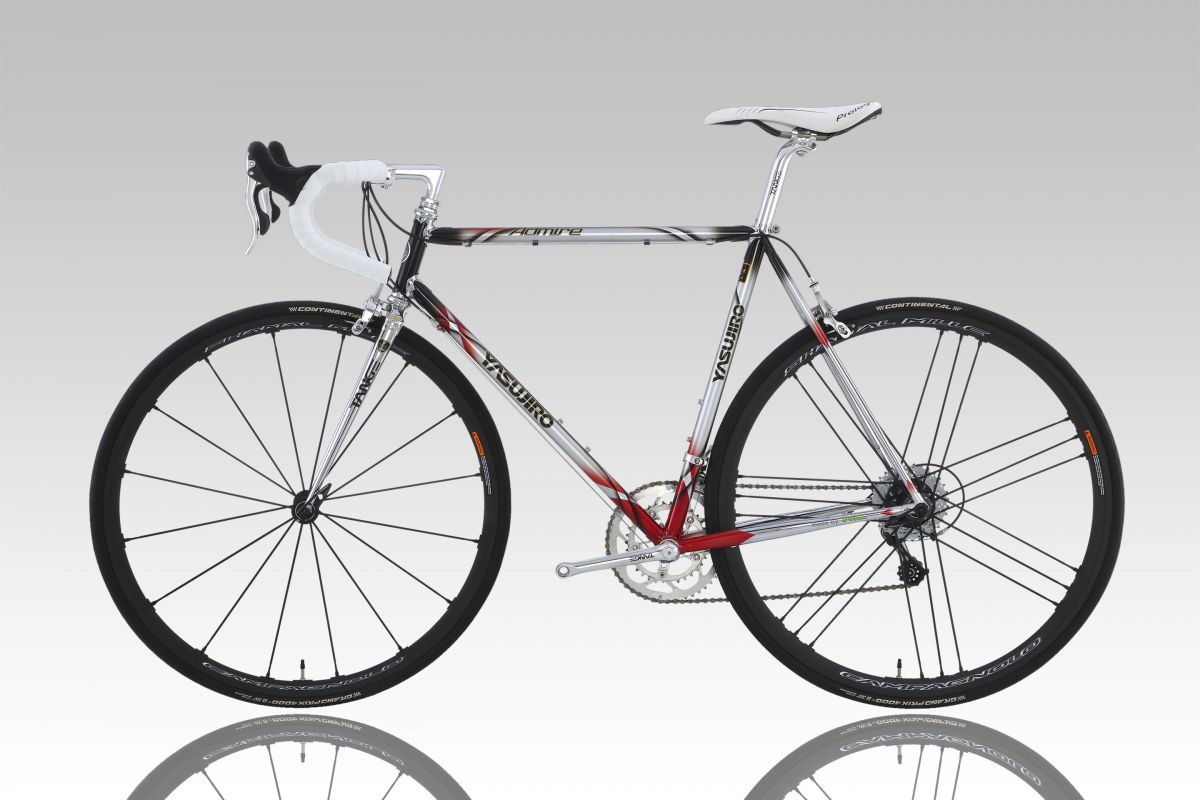

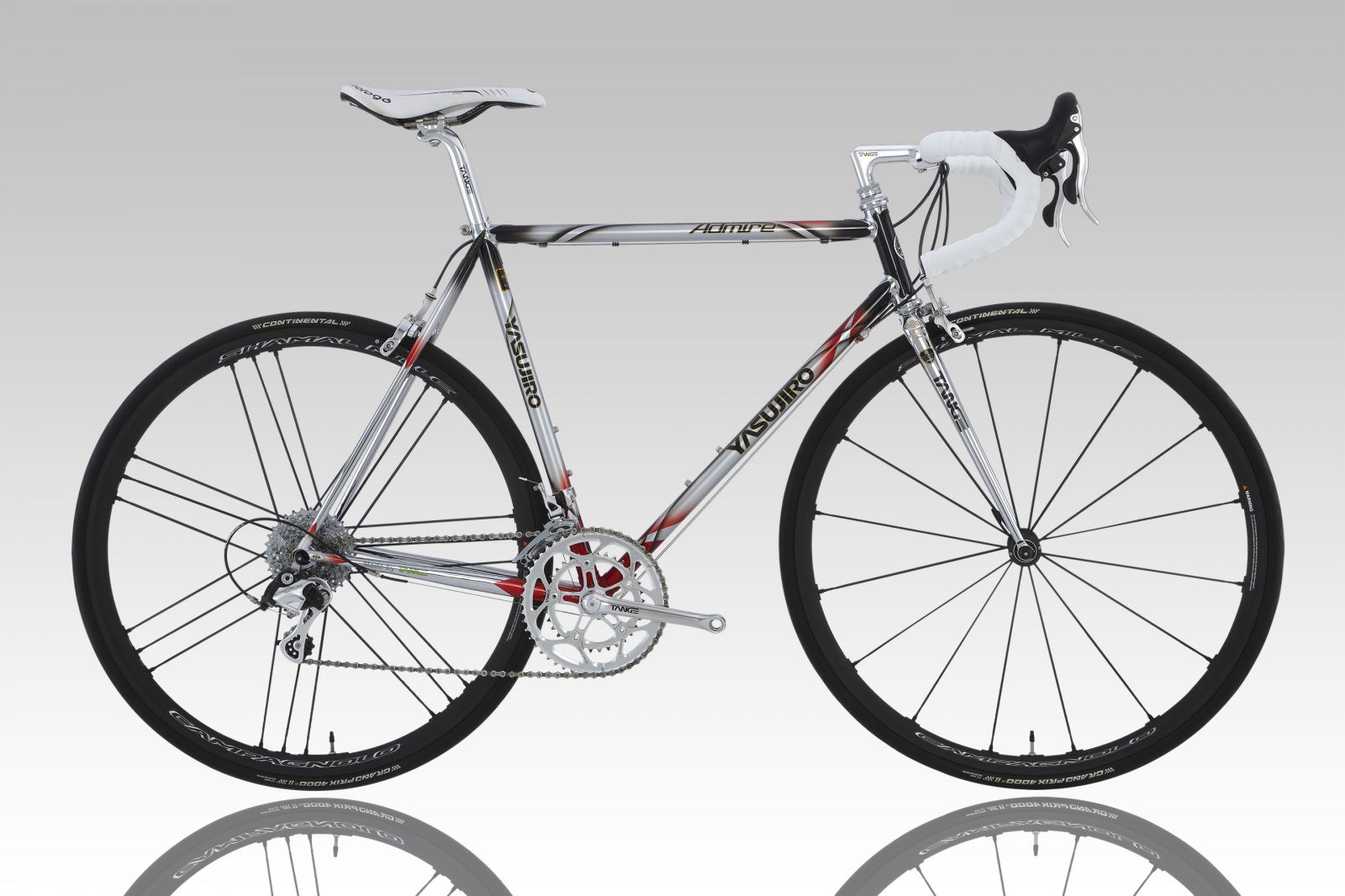

Classic lugged frame kit for an up to date road bike.
The use of Tange Prestige Japan double butted seamless tubes results in a frame kit light weight.

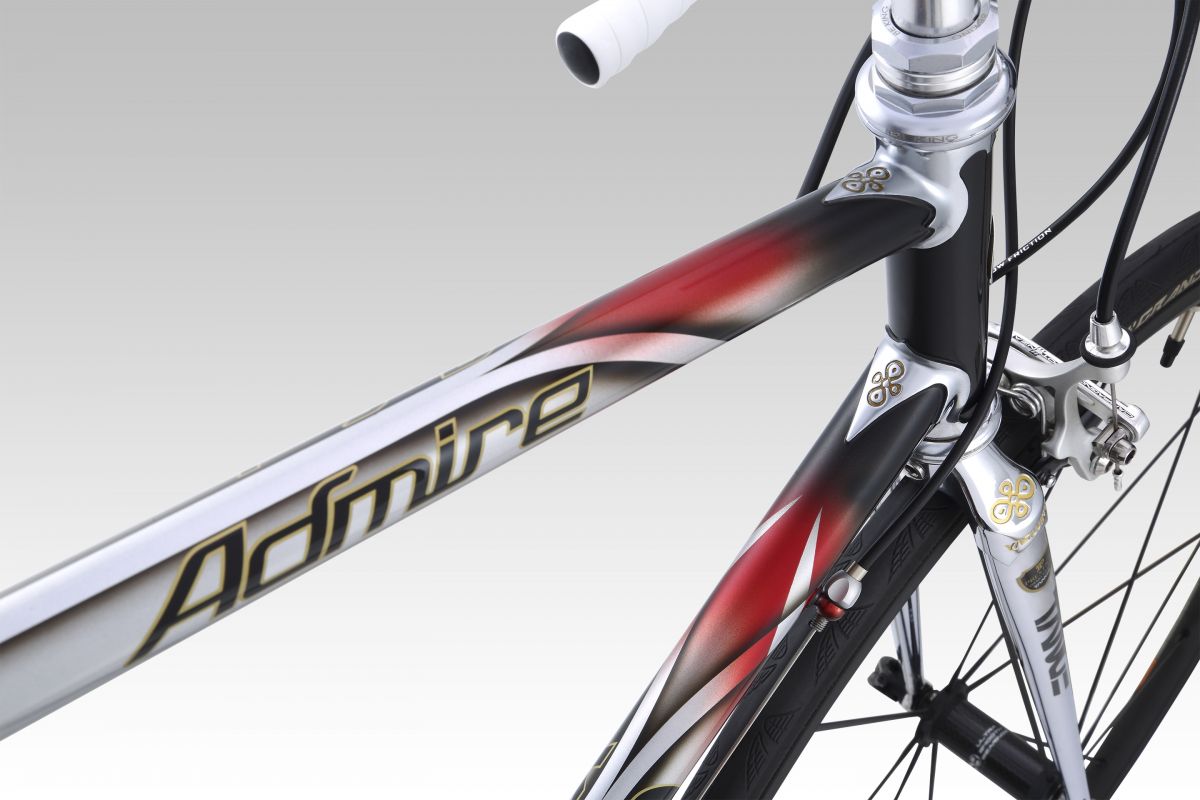

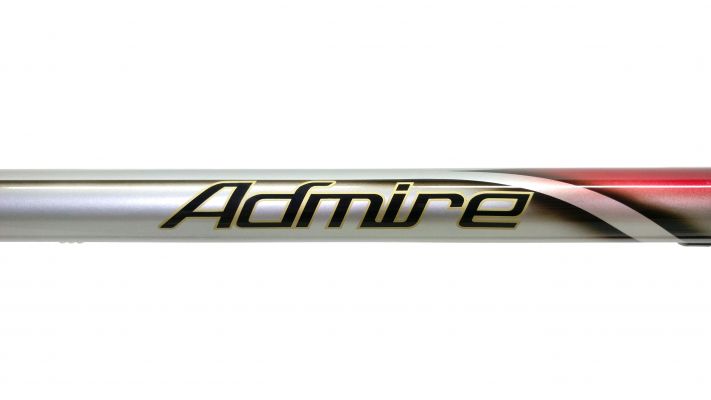

2 TT

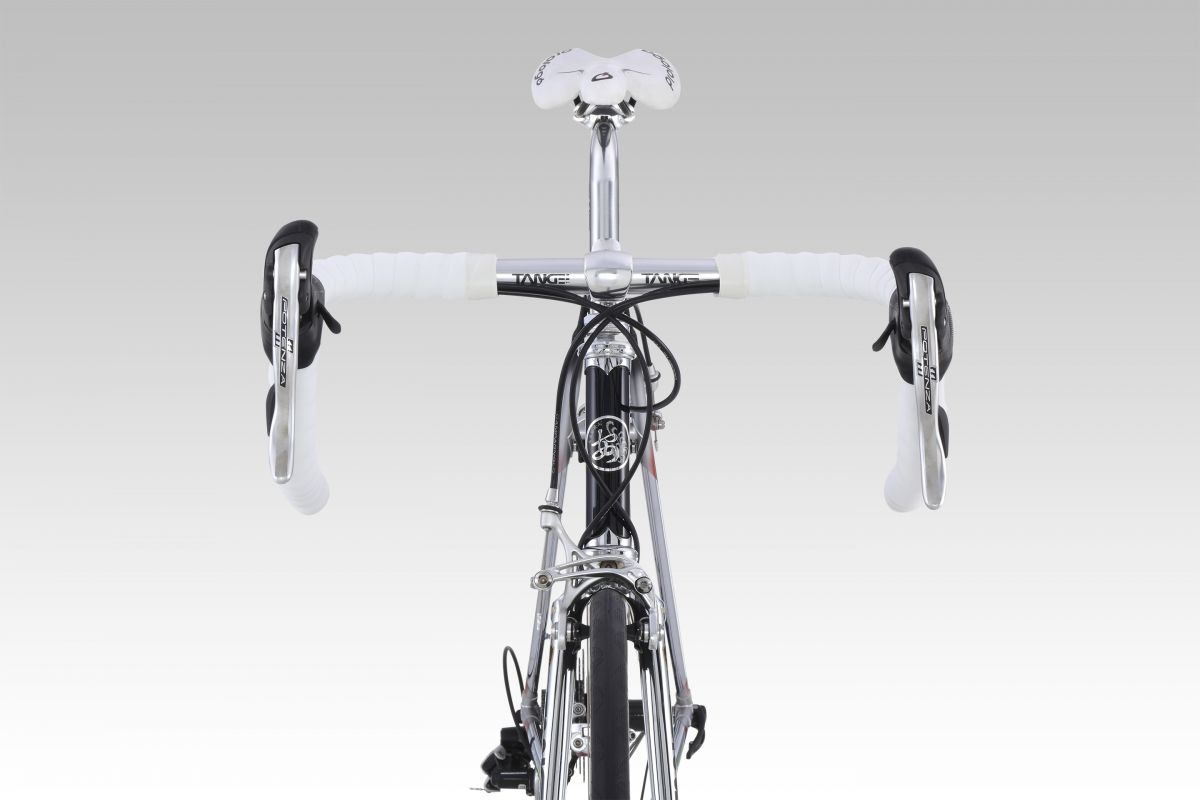

3 Front View

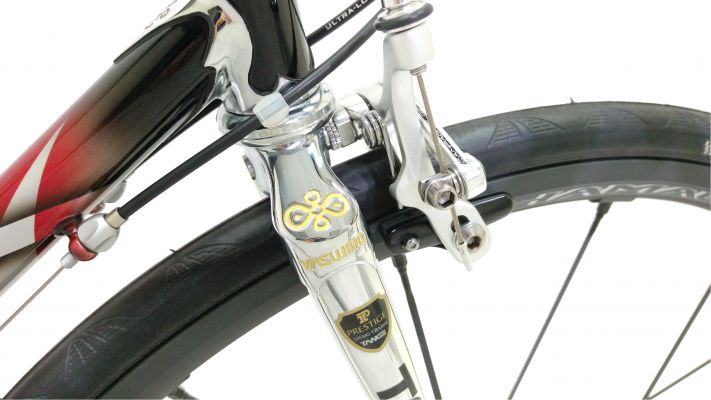

4 Fork Crown

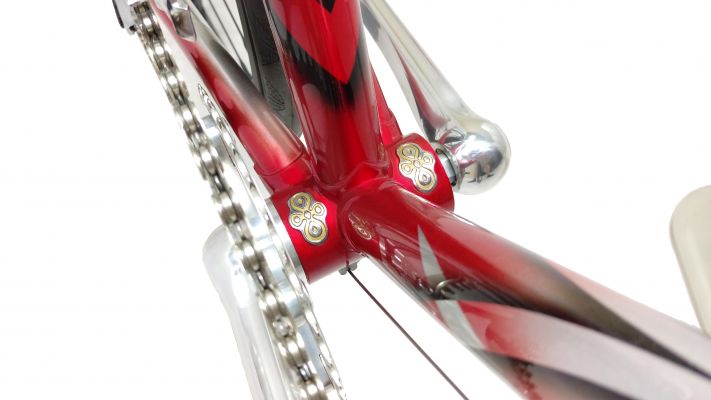

6 BB LOGO
7 NON drive side
2 TT
3 Front View
4 Fork Crown
6 BB LOGO
7 NON drive side

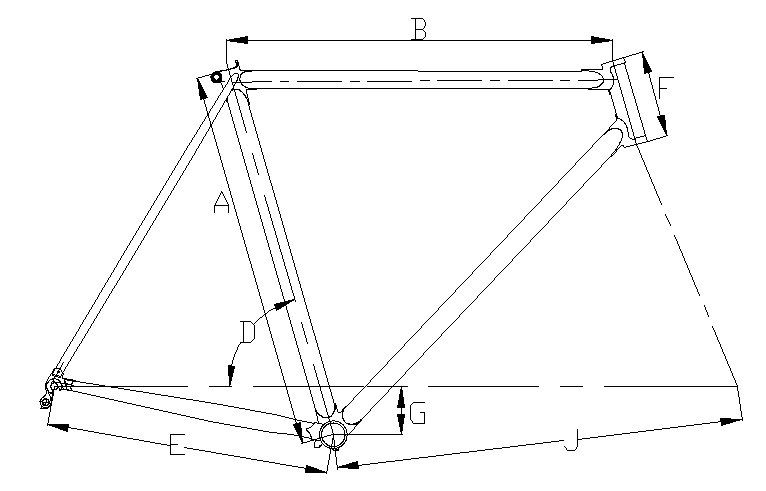

Frame Geometry
Size A B D E F G J
46CM 465 495 75 405 90 70 569
49CM 490 515 75 405 90 70 576
52CM 520 535 74 405 107 70 585
55CM 550 555 73.5 408 136 70 599
57CM 570 570 73.25 408 153 70 600
59CM 590 580 73 410 172 70 610
62CM 620 590 73 410 200 70 622



Bike BOM
Frame Tange Prestige Japan Cr-mo , Lugged
Fork Tange Prestige Cr-mo
Headset Tange Seiki
Stem Tange T-5330 Bar Bore 26 * -17Deg
Headlebar Tange T-4244 Drop Bar
Brakes Campagnolo Skeleton
Brake levers Campagnolo Potenza
Front derailleur Campagnolo Potenza 11S
Rear deraileur Campagnolo Potenza 11S
Shifters Campagnolo Potenza Power Shift Ergopwer 2*11SP
Crankset Campagnolo Potenza Power Torque-50*34
Cassette Campagnolo Potenza 11S/11*32
Wheels Alloy sealed hubs 700*22 mm Aero rims
Tires Continental GP 4000S 700*23
Seat post TANGE T- 3350 Single bolt 27,2
Saddle  Prologo ZERO, BK
Remark:
* Figures based on non-specific 700 * 23/25C tire, All specs subject to change
*Head tube 1", BSA BB Part, Brake Reach 39~49mm
* Sold as Frame Kit: Includes Frame / Fork / Headset
* Use Full TANGE PRESTIGE JAPAN tubeset
* Weight : 2170g (Frame size 52CM + Fork )
* Complete Bike For reference only, Please contact the sales staff
